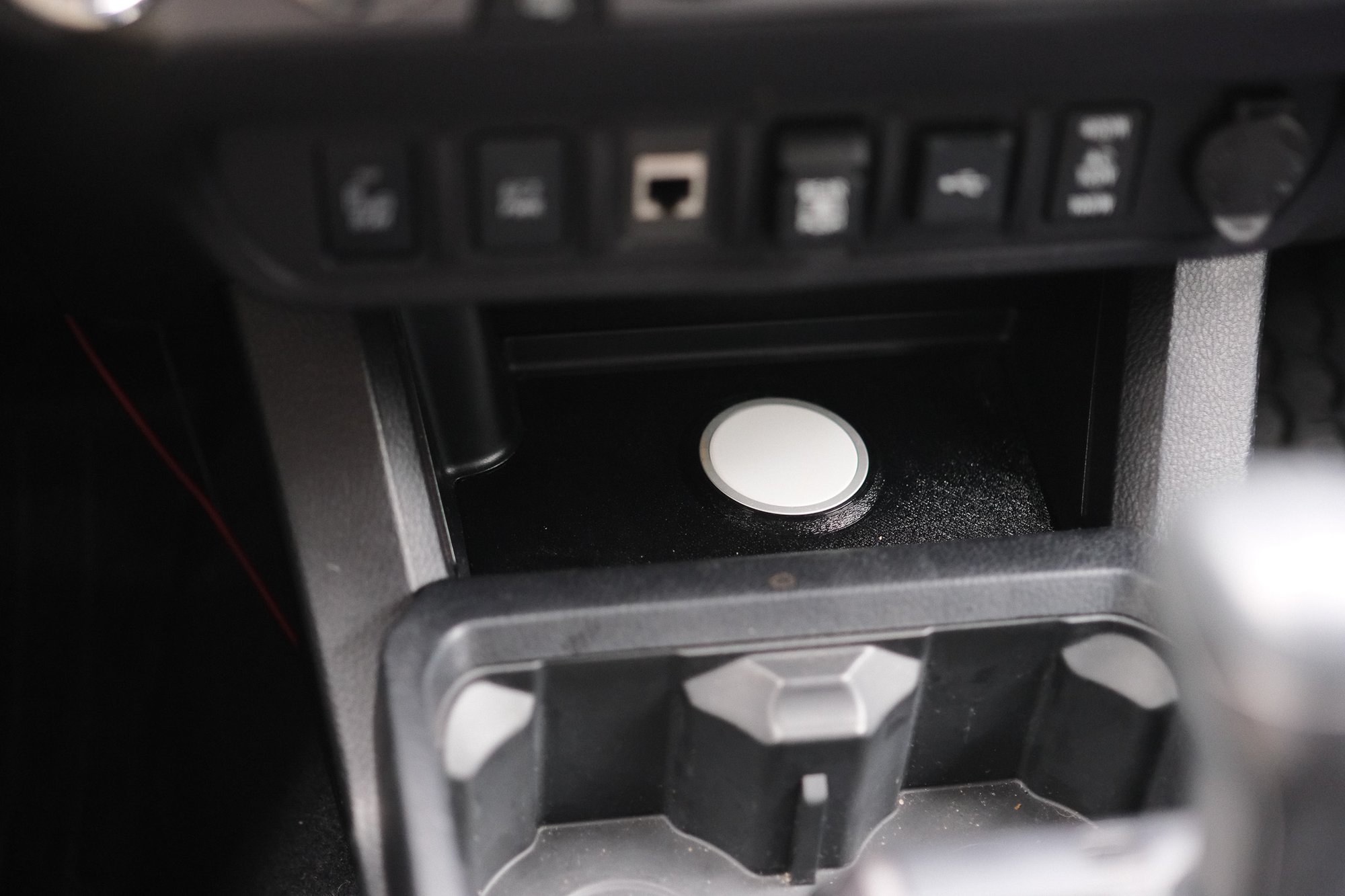

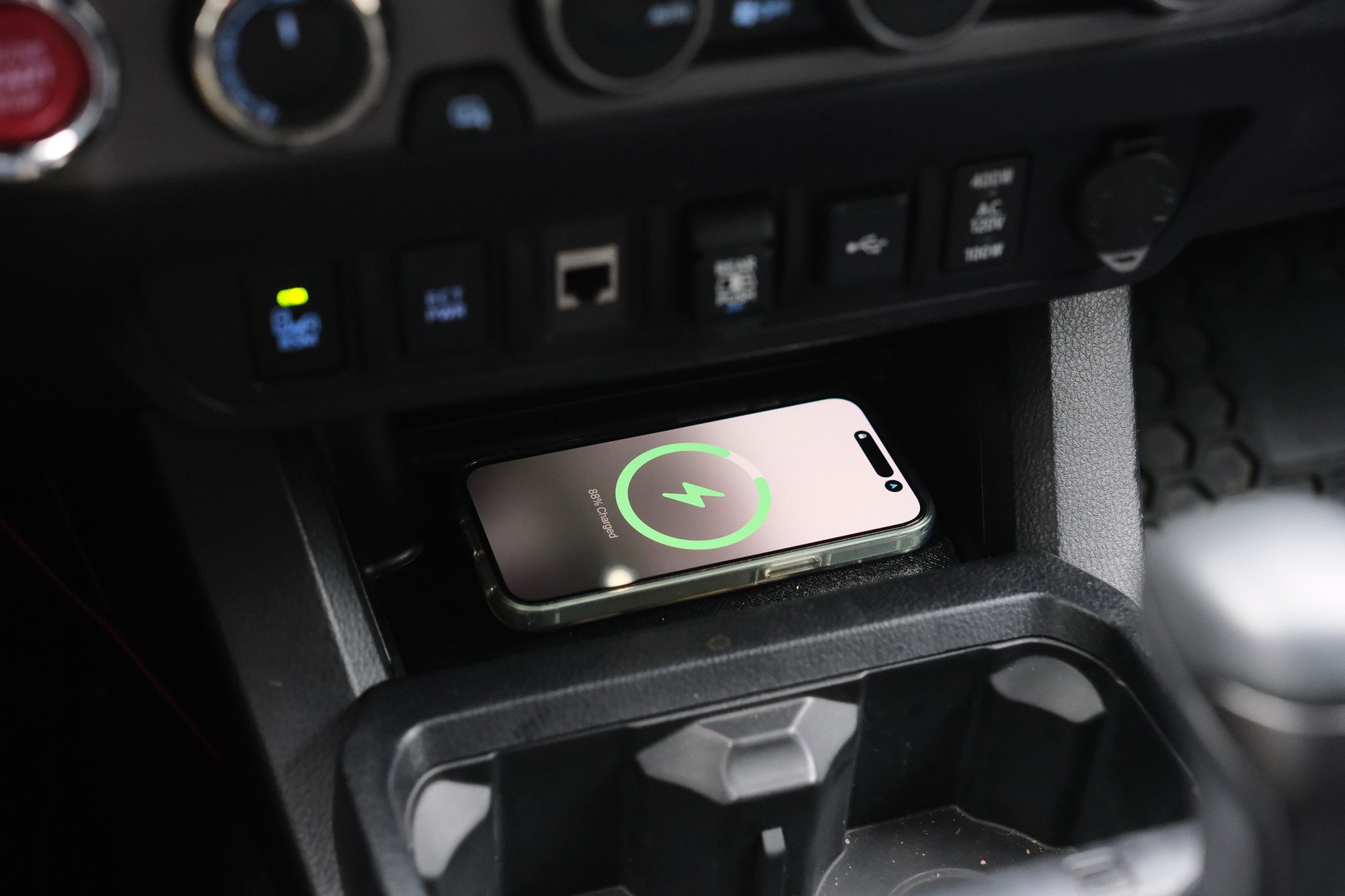

3rd Gen Tacoma Induction Charger

I built a better induction charger for 3rd gen Tacomas as the factory Qi induction charger doesn’t work with iPhones (or anything with a camera bump or case)

This design taps the Qi power lines at the Qi harness, so it should work even if your truck didn't come with a Qi charger.

Alternatively, you an also tap the cigarette lighter wires.

I also included a non-charger version of the file that you can print if you'd rather replace the OEM charger

Full assembly and install instructions here: https://docs.google.com/document/d/1l8U_FCL9TFiBEk5vJtDo687BQOqygSPmvotZ5mBC6zo/edit?usp=sharing

You'll need the following materials:

Apple MagSafe Induction Charger (still works with Android phones): https://amzn.to/3LP0wlA

This charger plate was designed specifically for the APPLE MagSafe Charger. The Apple chargers are the only chargers I’ve found to be reliable AND a full 25W. Most of the other chargers available are only 15W which don’t charge quickly or effectively.

65W USB-C 12V Power Adapter: https://amzn.to/4advBaH

In order to get the full 25W out of the Apple Charger, you must power it with AT LEAST 35W. You’re free to use any USB-C power adapter you like, I’ve linked the one I’ve used.

NOTE: DO NOT use the 15W usb adapters available on Amazon, otherwise you’ll turn your phone into a heater without actually charging it

I choose to solder my 12V power adapter in place, you can do the same or use Posi-Taps (included) if you don’t want to solder

NOTE: This is ONLY the 3D Printed component, you'll need to supply your own charger/electronics
